6. Wiring diagrams
In this section:

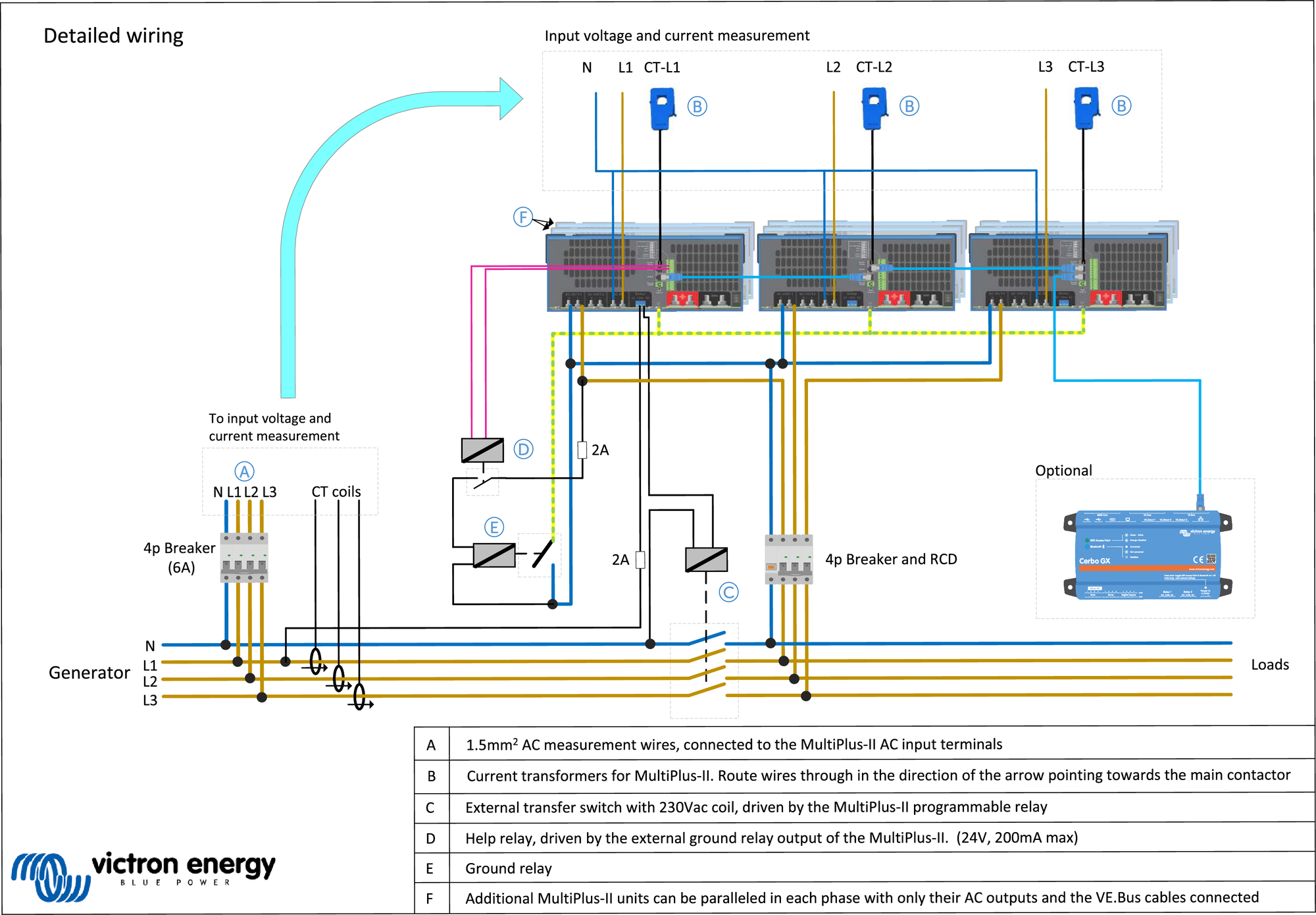

6.1. General wiring diagram
An example of a general wiring diagram using MultiPlus-II units.
 |
6.2. Wiring diagram with added Ziehl relay
This diagram is an example using a Ziehl relay and MultiPlus-II units.
